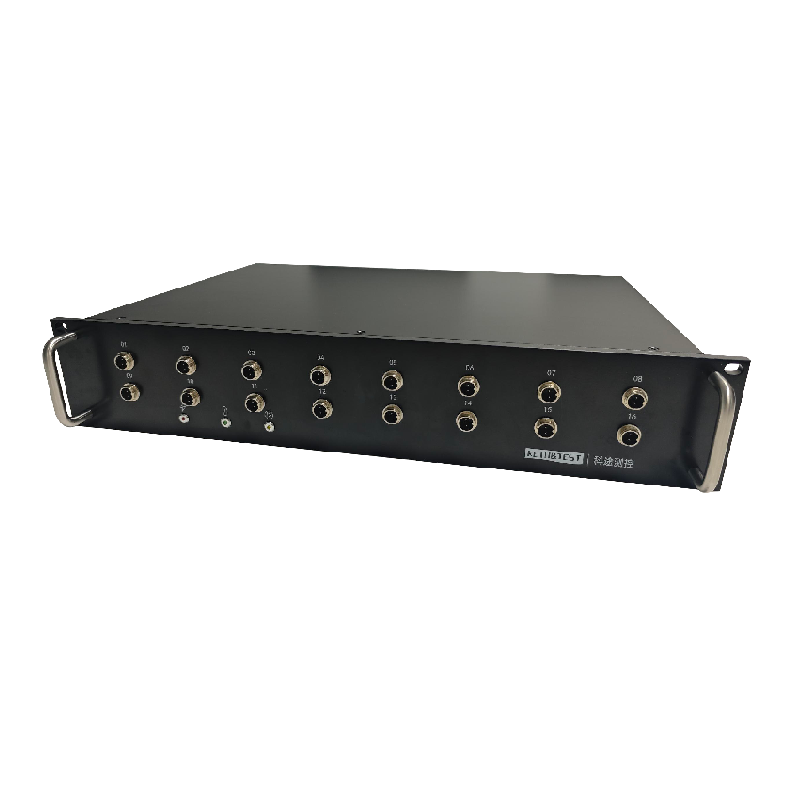

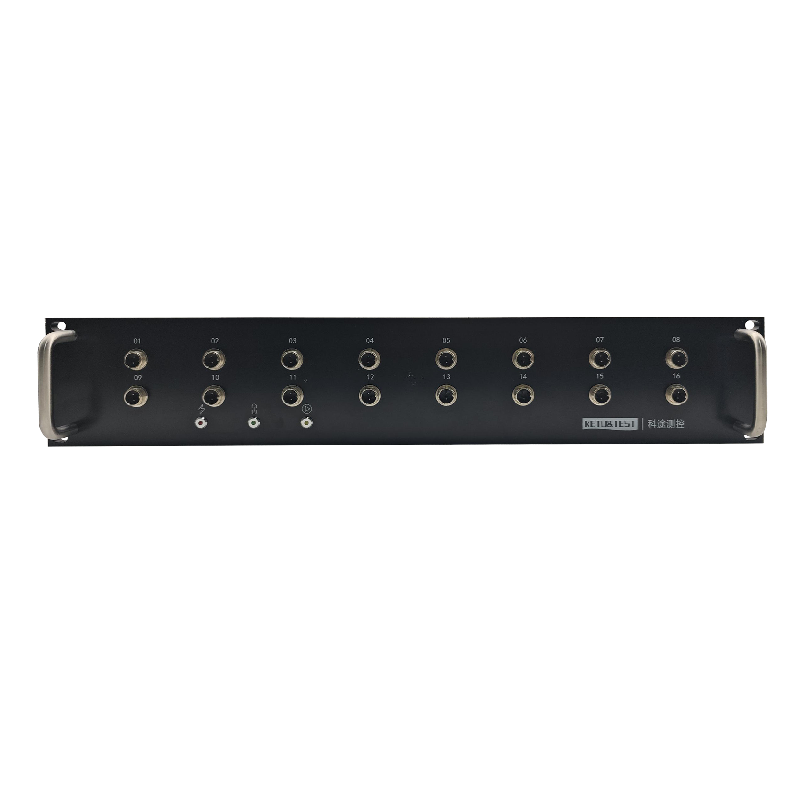

KTDA-CA16 Current Acquisition Device

The KTDA-CA16 steady-state current acquisition instrument is a high-performance current signal acquisition solution independently developed by KETU&TEST. Each unit has 16 channels, with an adjustable sampling rate of 0-100Hz per channel. Absolute synchronous acquisition is possible between channels, and the instrument supports expansion via a switch to meet large-scale testing needs.

Lead time：1 Month

Includes 13% VAT

Gauge Pressure Range

Wiring: Supports 2-wire 4-20mA sensors with power supply and signal acquisition

Brand		KETU&TEST
Model		KTVS-32A
Structure Type		Universal Integrated Type
Number of Channels		16
Sampling Frequency		0–100 Hz per channel (16 channels sample simultaneously; multi-unit networking via switch connection)
AD Resolution		24-bit
Accuracy		±0.1% FS
Wiring		Supports 2-wire 4-20mA sensors with power supply and signal acquisition
Communication		TCP/IP
Trigger Mode		Software trigger,hardware
Operating Temperature		-20 °C to +60 °C
Storage Temperature		-20 °C to +60 °C
Power Supply		220 VAC, 50 Hz
Software		"KetuSoft" data measurement software (C# based). Features: waveform display, channel selection, multiple pressure unit conversion, one-click calibration, video monitoring, data monitoring, one-click data storage, inter-channel data computation with real-time storage, pressure threshold setting, data storage monitoring, background image switching. SDK provided for customer integration.
